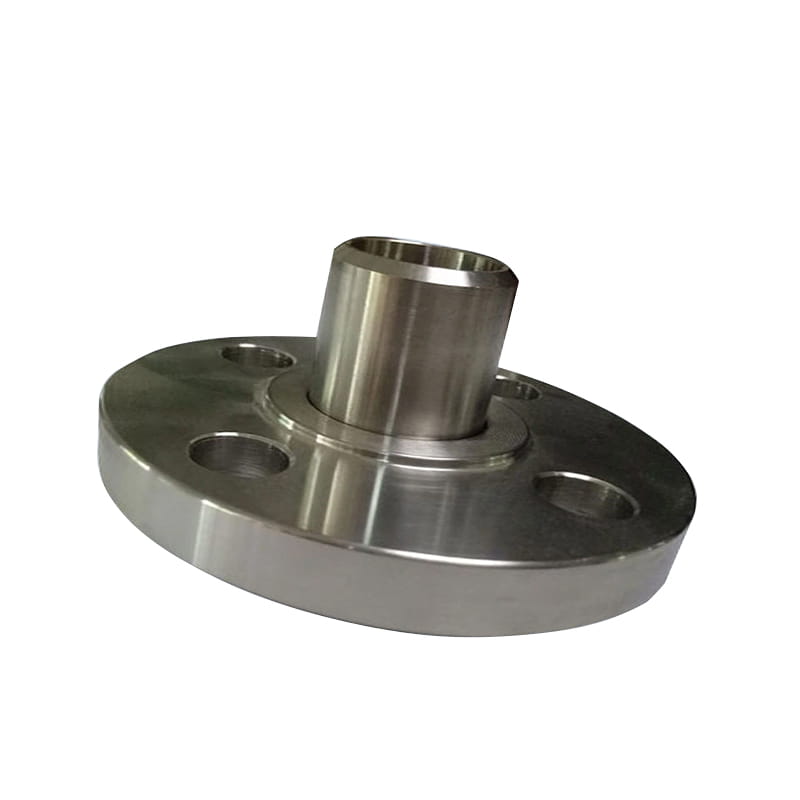

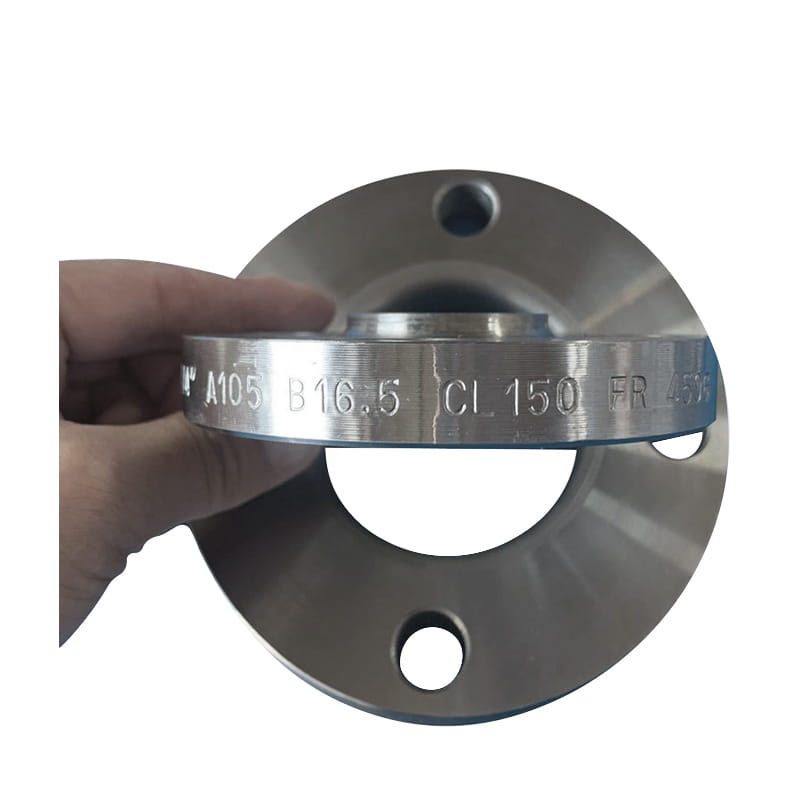

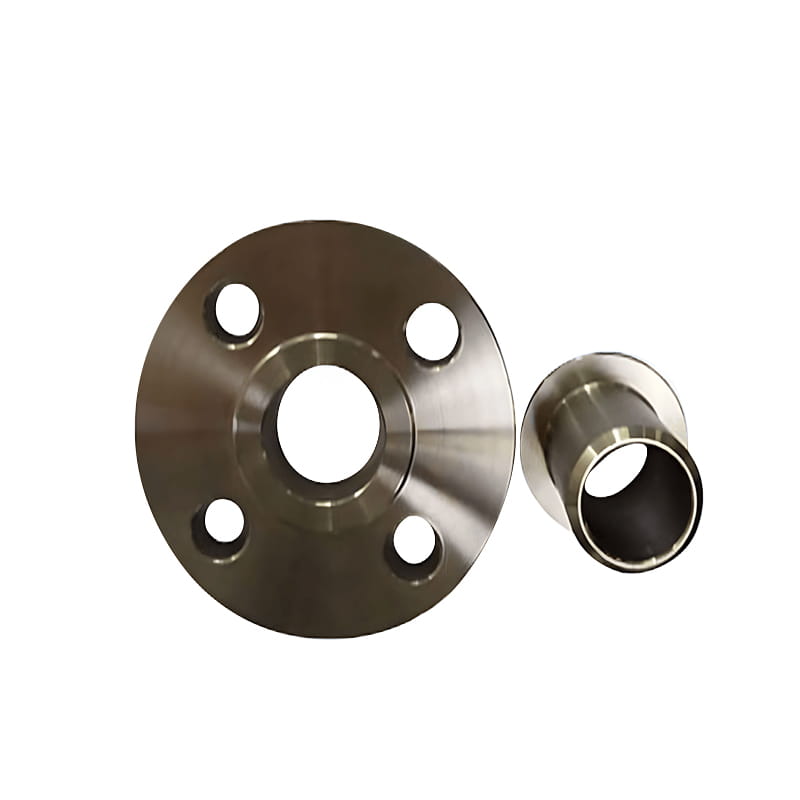

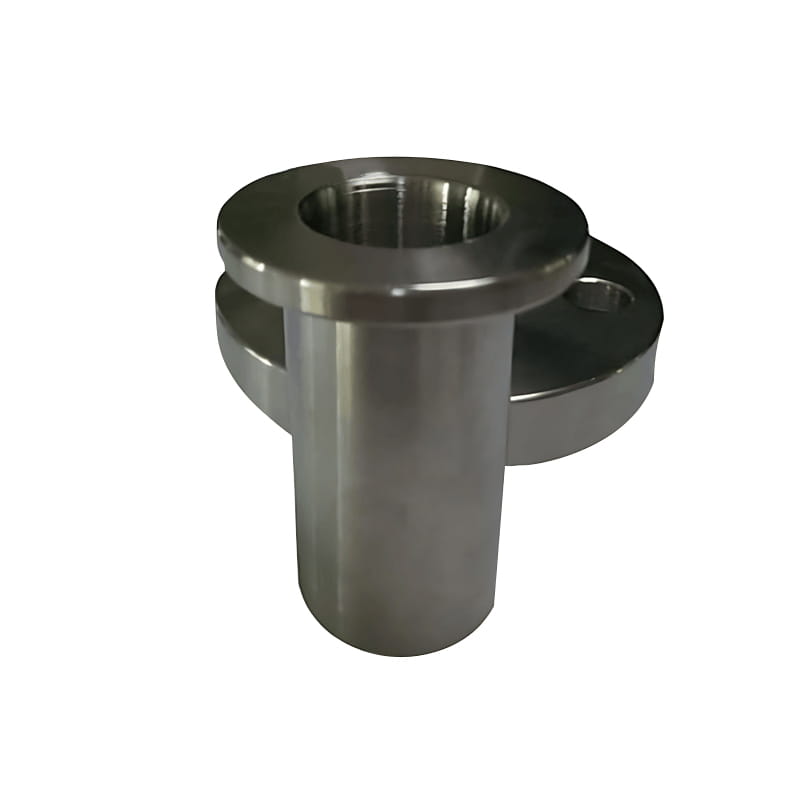

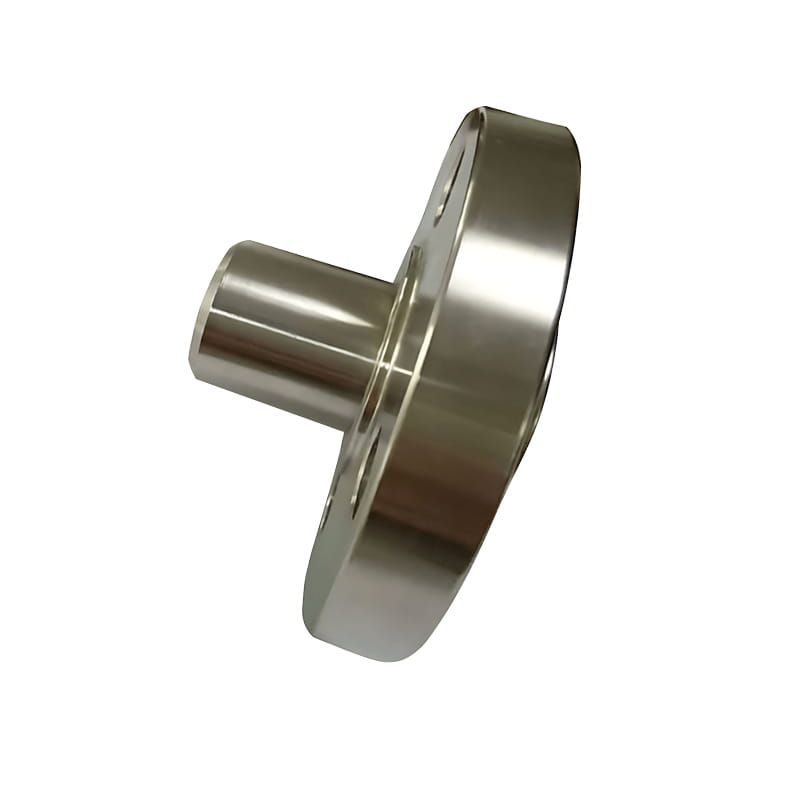

Is éard atá i gceist le flange comhpháirteach lap ná tionól dhá-deighleog, le deireadh stub a bhfuil flange fáinne-chomhpháirtithe curtha air. Is é an deireadh atá leis an gcnaipe ná an chnaipe táthaithe leis an bpíopa, agus is féidir an fáinne flange a iompú chun ailíniú leis an gcliathán cúplála.
Is féidir breathnú ar an deireadh mar fhad muinchille píopa le cnap amháin táthaithe agus an ceann eile ag lasadh ag an dronuillinn leis an ais píopa. Comhdhéanann an flange comhpháirteach lap agus an deireadh stub nasc comhcheangailte ilchodach dhá phíosa.
Tá na flanges seo beagnach mar an gcéanna le "flange duillín" ach amháin i gcás ga ag crosbhealach an aghaidh flange agus an tolladh chun freastal ar an gcuid flanged den deireadh. Tá a gcumas brú-bhrú beagán níos fearr ná a gcumas "duillín ar flange". Mar sin féin, níl sa saol tuirse ach an deichiú cuid de "flange muineál táthaithe".
Lap comhpháirtí lap duillín thar an bpíopa, agus níl siad táthaithe nó ceangailte leis ar shlí eile. Is cineál cóimeála flange iad a úsáidtear go coitianta i gcórais nó i bhfeidhmchláir bhrú íseal nuair a bhíonn gá le dí-tionól go minic. $ $
Tabhairt isteach
| Caighdeánach | ANSI B16.5, ANSI B16.36, ANSI B16.47, EN1092, UNI 2277/2278, ANSI B16.48, JIS, BS 4504, DIN, SABS1123, GOST-12820 |
| Ábhar | Stainless Steel, Carbon Steel, Alloy Steel, Cupro Nickel (90/10, 70/30, 66/30/2/2), Hastelloy (C4, C-22, C276, B-2), Nickel (200 / 201), Monel (400 & K500), Inconel (600, 601, 625 & 825), Incolloy (800, 800H), Alloy 20, Cruach Duplex, SS 904L, Tíotáiniam (1 & 2) etc. |
| Tar chun tosaigh | Ola Frith-Rust, Péintéireacht (Dubh, Buí), Galbhánú, Cumhacht Cumhachta |
| Tíopáil | Ag cruthú, próiseáil CNC |
| méid | ½ orlach - 24 orlach |
| Am seachadta | Laistigh de 5-30 lá tar éis an réamhíoctha a fháil |
| Pacáil | Pailléid sraithadhmaid, pailléid adhmaid, cás adhmaid, etc. |
| Iarrchán | Cumhacht leictreach, réimse ola, longthógáil, amach ón gcósta, córais uisce, gás nádúrtha, tionscadail phíobáin, srl. $ $ |
Aicme 150 lb
| Ale lle lle lle lle lle lle linnnnnnnnmniúil Méid píopaí | Lasmuigh Lárlíne | Tríd is tríd Lárlíne | Taobh istigh Lárlíne | Flandaí Tiús | Tríd is tríd Ar fad | Lap Marbh fhianaise | Mol Lárlíne | Uimhir a chur ar de phoill | Poll bolt Lárlíne | Lárlíne de chiorcal de phoill | Ualach |

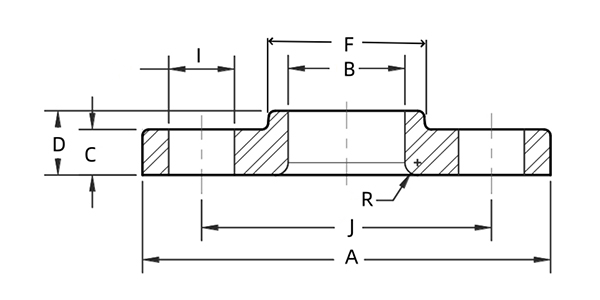

| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | I (mm) | J (mm) | kg/ píosa |
| ½ | 21.30 | 88.90 | 22.90 | 11.20 | 15.70 | 3.00 | 30.20 | 4 | 15.70 | 60.45 | 0.38 |
| ¾ | 26.70 | 98.60 | 28.20 | 12.70 | 15.70 | 3.00 | 38.10 | 4 | 15.70 | 69.85 | 0.55 |
| 1 | 33.40 | 108.00 | 35.10 | 14.20 | 17.50 | 3.00 | 49.30 | 4 | 15.70 | 79.25 | 0.76 |
| 1 ¼ | 42.20 | 117.30 | 43.70 | 15.70 | 20.60 | 4.80 | 58.70 | 4 | 15.70 | 88.90 | 1.01 |
| 1 ½ | 48.30 | 127.00 | 50.00 | 17.50 | 22.40 | 6.40 | 65.00 | 4 | 15.70 | 98.60 | 1.30 |
| 2 | 60.30 | 152.40 | 62.50 | 19.10 | 25.40 | 7.90 | 77.70 | 4 | 19.10 | 120.70 | 2.03 |
| 2 ½ $ $ | 73.00 | 177.80 | 75.40 | 22.40 | 28.40 | 7.90 | 90.40 | 4 | 19.10 | 139.70 | 3.25 |
| 3 | 88.90 | 190.50 | 91.40 | 23.90 | 30.20 | 9.70 | 108.00 | 4 | 19.10 | 152.40 | 3.81 |
| 3 ½ | 101.60 | 215.90 | 104.10 | 23.90 | 31.75 | 9.70 | 122.20 | 8 | 19.10 | 177.80 | 4.76 |
| 4 | 114.30 | 228.60 | 116.80 | 23.90 | 33.30 | 11.20 | 134.90 | 8 | 19.10 | 190.50 | 5.25 |
| 5 | 141.30 | 254.00 | 114.50 | 23.90 | 36.60 | 11.20 | 163.60 | 8 | 22.40 | 215.90 | 6.02 |
| 6 | 168.30 | 279.40 | 171.50 | 25.40 | 39.60 | 12.70 | 192.00 | 8 | 22.40 | 241.30 | 7.40 |
| 8 | 219.10 | 342.90 | 222.30 | 28.40 | 44.50 | 12.70 | 246.10 | 8 | 22.40 | 298.50 | 12.10 |
| 10 | 273.00 | 406.40 | 277.40 | 30.20 | 49.30 | 12.70 | 304.80 | 12 | 25.40 | 362.00 | 16.40 |
| 12 | 323.80 | 482.60 | 328.20 | 31.75 | 55.60 | 12.70 | 365.30 | 12 | 25.40 | 431.80 | 26.10 |
| 14 | 355.60 | 533.40 | 360.20 | 35.10 | 79.25 | 12.70 | 400.10 | 12 | 28.40 | 476.30 | 34.50 |
| 16 | 406.40 | 596.90 | 411.20 | 36.60 | 87.40 | 12.70 | 457.20 | 16 | 28.40 | 539.80 | 44.60 |
| 18 | 457.20 | 635.00 | 462.30 | 39.60 | 96.80 | 12.70 | 505.00 | 16 | 31.75 | 577.90 | 48.70 |
| 20 | 508.00 | 698.50 | 514.40 | 42.90 | 103.10 | 12.70 | 558.80 | 20 | 31.75 | 635.00 | 61.60 |
| 24 | 609.60 | 812.80 | 616.00 | 47.80 | 111.30 | 12.70 | 663.40 | 20 | 35.10 | 749.30 | 86.60 |
Aicme 300 lb
| Ainmniúil Méid píopaí | Lasmuigh Lárlíne | Tríd is tríd Lárlíne | Taobh istigh Lárlíne | Flandaí Tiús | Tríd is tríd Ar fad | Lap Marbh fhianaise | Mol Lárlíne | Uimhir a chur ar de phoill | Poll bolt Lárlíne | Lárlíne de chiorcal de phoill | Ualach |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | I (mm) | J (mm) | kg/ píosa |
| ½ | 21.30 | 95.20 | 22.90 | 14.20 | 22.30 | 3.00 | 38.10 | 4 | 15.70 | 66.55 | 0.62 |
| ¾ | 26.70 | 117.30 | 28.20 | 15.70 | 25.40 | 3.00 | 47.70 | 4 | 19.00 | 82.50 | 1.10 |
| 1 | 33.40 | 123.90 | 35.10 | 17.50 | 26.90 | 3.00 | 53.80 | 4 | 19.00 | 88.90 | 1.33 |
| 1 ¼ | 42.20 | 133.30 | 43.70 | 19.00 | 26.90 | 4.80 | 63.50 | 4 | 19.00 | 98.50 | 1.65 |
| 1 ½ | 48.30 | 155.4 | 50.00 | 20.60 | 30.20 | 6.40 | 69.85 | 4 | 22.30 | 114.30 | 2.44 |
| 2 | 60.30 | 165.10 | 62.50 | 22.30 | 33.20 | 7.90 | 84.00 | 8 | 19.10 | 127.00 | 2.83 |
| 2 ½ | 73.00 | 190.50 | 75.40 | 25.40 | 38.10 | 7.90 | 100.00 | 8 | 22.30 | 149.30 | 4.25 |
| 3 | 88.90 | 209.50 | 91.40 | 28.40 | 42.90 | 9.70 | 117.30 | 8 | 22.30 | 168.10 | 5.78 |
| 3 ½ | 101.60 | 228.60 | 104.10 | 30.20 | 44.40 | 9.70 | 133.30 | 8 | 22.30 | 184.10 | 7.27 |
| 4 | 114.30 | 254.00 | 116.80 | 31.70 | 47.70 | 11.20 | 146.00 | 8 | 22.30 | 200.10 | 9.55 |
| 5 | 141.30 | 279.40 | 114.50 | 35.00 | 50.80 | 11.20 | 177.80 | 8 | 22.30 | 234.90 | 12.20 |
| 6 | 168.30 | 317.50 | 171.50 | 36.50 | 52.30 | 12.70 | 206.20 | 12 | 22.30 | 267.70 | 15.50 |
| 8 | 219.10 | 381.00 | 222.30 | 41.10 | 61.90 | 12.70 | 260.30 | 12 | 25.40 | 330.20 | 24.10 |
| 10 | 273.00 | 444.50 | 277.40 | 47.70 | 95.20 | 12.70 | 320.50 | 16 | 28.40 | 387.30 | 34.40 |
| 12 | 323.80 | 520.70 | 328.20 | 50.80 | 101.60 | 12.70 | 374.60 | 16 | 31.70 | 450.80 | 50.40 |
| 14 | 355.60 | 584.20 | 360.20 | 53.80 | 111.20 | 12.70 | 425.40 | 20 | 31.70 | 514.3 | 70.90 |
| 16 | 406.40 | 647.70 | 411.20 | 57.15 | 120.60 | 12.70 | 482.60 | 20 | 35.00 | 571.50 | 89.50 |
| 18 | 457.20 | 711.20 | 462.30 | 60.45 | 130.00 | 12.70 | 533.40 | 24 | 35.00 | 628.60 | 111.00 |
| 20 | 508.00 | 774.70 | 514.40 | 63.50 | 139.70 | 12.70 | 587.20 | 24 | 35.00 | 685.80 | 137.00 |
| 24 | 609.60 | 914.40 | 616.00 | 69.80 | 152.40 | 12.70 | 701.50 | 24 | 41.10 | 812.80 | 204.00 |
Aicme 400 lb
| Ainmniúil Méid píopaí | Lasmuigh Lárlíne | Tríd is tríd Lárlíne | Taobh istigh Lárlíne | Flandaí Tiús | Tríd is tríd Ar fad | Lap Marbh fhianaise | Mol Lárlíne | Uimhir a chur ar de phoill | Poll bolt Lárlíne | Lárlíne de chiorcal de phoill | Ualach |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | I (mm) | J (mm) | kg/ píosa |
| ½ | 21.30 | 95.30 | 22.90 | 14.20 | 22.40 | 3.00 | 38.10 | 4 | 15.70 | 66.55 | 0.72 |
| ¾ | 26.70 | 117.30 | 28.20 | 15.70 | 25.40 | 3.00 | 47.80 | 4 | 19.10 | 82.60 | 1.25 |
| 1 | 33.40 | 124.00 | 35.10 | 17.50 | 26.90 | 3.00 | 53.80 | 4 | 19.10 | 88.90 | 1.50 |
| 1 ¼ | 42.20 | 133.40 | 43.70 | 20.60 | 28.40 | 4.80 | 63.50 | 4 | 19.10 | 98.60 | 2.00 |
| 1 ½ | 48.30 | 155.40 | 50.00 | 22.40 | 31.75 | 6.40 | 69.85 | 4 | 22.40 | 114.30 | 2.92 |
| 2 | 60.30 | 165.10 | 62.50 | 25.40 | 36.60 | 7.90 | 84.10 | 8 | 19.10 | 127.00 | 3.55 |
| 2 ½ | 73.00 | 190.50 | 75.40 | 28.40 | 41.10 | 7.90 | 100.10 | 8 | 22.40 | 149.40 | 5.23 |
| 3 | 88.90 | 209.60 | 91.40 | 31.75 | 46.00 | 9.70 | 117.30 | 8 | 22.40 | 168.10 | 6.95 |
| 3 ½ | 101.60 | 228.60 | 104.10 | 35.10 | 49.30 | 9.70 | 133.40 | 8 | 25.40 | 184.20 | 8.78 |
| 4 | 114.30 | 254.00 | 116.80 | 35.10 | 50.80 | 11.20 | 146.10 | 8 | 25.40 | 200.20 | 10.90 |
| 5 | 141.30 | 279.40 | 114.50 | 38.10 | 53.80 | 11.20 | 177.80 | 8 | 25.40 | 235.00 | 13.70 |
| 6 | 168.30 | 317.50 | 171.50 | 41.10 | 57.15 | 12.70 | 206.20 | 12 | 25.40 | 269.70 | 18.00 |
| 8 | 219.10 | 381.00 | 222.30 | 47.80 | 68.30 | 12.70 | 260.40 | 12 | 28.40 | 330.20 | 28.30 |
| 10 | 273.00 | 445.00 | 277.40 | 53.80 | 101.60 | 12.70 | 320.50 | 16 | 31.75 | 387.40 | 38.80 |
| 12 | 323.80 | 520.70 | 328.20 | 57.15 | 108.00 | 12.70 | 374.70 | 16 | 35.10 | 450.90 | 56.60 |
| 14 | 355.60 | 584.20 | 360.2 | 60.45 | 117.30 | 12.70 | 425.50 | 20 | 35.10 | 514.40 | 78.60 |
| 16 | 406.40 | 647.70 | 411.20 | 63.50 | 127.00 | 12.70 | 482.60 | 20 | 38.10 | 571.50 | 100.00 |
| 18 | 457.20 | 711.20 | 462.30 | 66.55 | 136.70 | 12.70 | 533.40 | 24 | 38.10 | 628.70 | 122.00 |
| 20 | 508.00 | 774.70 | 514.40 | 69.85 | 146.10 | 12.70 | 587.20 | 24 | 41.10 | 685.80 | 145.00 |
| 24 | 609.60 | 914.40 | 616.00 | 76.20 | 158.80 | 12.70 | 701.50 | 24 | 47.80 | 812.80 | 217.00 |
Aicme 600 lb
| Ainmniúil Méid píopaí | Lasmuigh Lárlíne | Tríd is tríd Lárlíne | Taobh istigh Lárlíne | Flandaí Tiús | Tríd is tríd Ar fad | Lap Marbh fhianaise | Mol Lárlíne | Uimhir a chur ar de phoill | Poll bolt Lárlíne | Lárlíne de chiorcal de phoill | Ualach |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | I (mm) | J (mm) | kg/ píosa |
| ½ | 21.30 | 95.30 | 22.90 | 14.20 | 22.40 | 3.00 | 38.10 | 4 | 15.70 | 66.55 | 0.72 |
| ¾ | 26.70 | 117.30 | 28.20 | 15.70 | 25.40 | 3.00 | 47.80 | 4 | 19.10 | 82.60 | 1.25 |
| 1 | 33.40 | 124.00 | 35.10 | 17.50 | 26.90 | 3.00 | 53.80 | 4 | 19.10 | 88.90 | 1.50 |
| 1 ¼ | 42.20 | 133.40 | 43.70 | 20.60 | 28.40 | 4.80 | 63.50 | 4 | 19.10 | 98.60 | 2.00 |
| 1 ½ | 48.30 | 155.4 | 50.00 | 22.40 | 31.75 | 6.40 | 69.85 | 4 | 22.40 | 114.30 | 2.92 |
| 2 | 60.30 | 165.10 | 62.50 | 25.40 | 36.60 | 7.90 | 84.10 | 8 | 19.10 | 127.00 | 3.55 |
| 2 ½ | 73.00 | 190.50 | 75.40 | 28.40 | 41.10 | 7.90 | 100.10 | 8 | 22.40 | 149.40 | 5.23 |
| 3 | 88.90 | 209.60 | 91.40 | 31.75 | 46.00 | 9.70 | 117.30 | 8 | 22.40 | 168.10 | 6.95 |
| 3 ½ | 101.60 | 228.60 | 104.10 | 35.10 | 49.30 | 9.70 | 133.40 | 8 | 25.40 | 184.20 | 8.78 |
| 4 | 114.30 | 273.10 | 116.80 | 38.10 | 53.80 | 11.20 | 152.40 | 8 | 25.40 | 215.9 | 14.40 |
| 5 | 141.30 | 330.20 | 114.50 | 44.50 | 60.45 | 11.20 | 189.00 | 8 | 28.40 | 266.70 | 24.30 |
| 6 | 168.30 | 355.60 | 171.50 | 47.80 | 66.55 | 12.70 | 222.30 | 12 | 28.40 | 292.10 | 28.50 |
| 8 | 219.10 | 419.10 | 222.30 | 55.60 | 76.20 | 12.70 | 273.10 | 12 | 31.75 | 349.30 | 43.10 |
| 10 | 273.00 | 508.00 | 277.40 | 63.50 | 111.30 | 12.70 | 342.90 | 16 | 35.10 | 431.80 | 70.50 |
| 12 | 323.80 | 558.80 | 328.20 | 66.55 | 117.30 | 12.70 | 400.10 | 20 | 35.10 | 489.00 | 86.10 |
| 14 | 355.60 | 603.30 | 360.20 | 69.85 | 127.00 | 12.70 | 431.80 | 20 | 38.10 | 527.10 | 100.00 |
| 16 | 406.40 | 685.80 | 411.20 | 76.20 | 139.70 | 12.70 | 495.30 | 20 | 41.10 | 603.30 | 145.00 |
| 18 | 457.20 | 743.00 | 462.30 | 82.60 | 152.40 | 12.70 | 546.10 | 20 | 44.50 | 654.10 | 177.00 |
| 20 | 508.00 | 812.80 | 514.40 | 88.90 | 165.10 | 12.70 | 609.60 | 24 | 44.50 | 723.90 | 225.00 |
| 24 | 609.60 | 939.80 | 616.00 | 101.60 | 184.20 | 12.70 | 717.60 | 24 | 50.80 | 838.20 | 318.00 |
Aicme 900 lb
| Ainmniúil Méid píopaí | Lasmuigh Lárlíne | Tríd is tríd Lárlíne | Taobh istigh Lárlíne | Flandaí Tiús | Tríd is tríd Ar fad | Lap Marbh fhianaise | Mol Lárlíne | Uimhir a chur ar de phoill | Poll bolt Lárlíne | Lárlíne de chiorcal de phoill | Ualach |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | I (mm) | J (mm) | kg/ píosa |
| ½ | 21.30 | 120.60 | 22.90 | 22.30 | 31.70 | 3.00 | 38.10 | 4 | 22.30 | 82.50 | 1.71 |
| ¾ | 26.70 | 130.00 | 28.20 | 25.40 | 35.00 | 3.00 | 44.40 | 4 | 22.30 | 88.90 | 2.30 |
| 1 | 33.40 | 149.30 | 35.10 | 28.40 | 41.10 | 3.00 | 52.30 | 4 | 25.40 | 101.60 | 3.40 |
| 1 ¼ | 42.20 | 158.70 | 43.70 | 28.40 | 41.10 | 4.80 | 63.50 | 4 | 25.40 | 111.20 | 3.85 |
| 1 ½ | 48.30 | 177.80 | 50.00 | 31.70 | 44.40 | 6.40 | 69.85 | 4 | 28.40 | 123.90 | 5.28 |
| 2 | 60.30 | 215.90 | 62.50 | 38.10 | 57.15 | 7.90 | 104.60 | 8 | 25.40 | 165.10 | 9.78 |
| 2 ½ | 73.00 | 244.30 | 75.40 | 41.10 | 63.50 | 7.90 | 123.90 | 8 | 28.40 | 190.50 | 13.60 |
| 3 | 88.90 | 241.30 | 91.40 | 38.10 | 53.80 | 9.70 | 127.00 | 8 | 25.40 | 190.50 | 11.30 |
| 4 | 114.30 | 292.10 | 116.80 | 44.40 | 69.85 | 11.20 | 158.70 | 8 | 31.70 | 234.90 | 19.20 |
| 5 | 141.30 | 349.20 | 114.50 | 50.80 | 79.25 | 11.20 | 190.50 | 8 | 35.00 | 279.40 | 31.20 |
| 6 | 168.30 | 381.00 | 171.50 | 55.60 | 85.80 | 12.70 | 234.90 | 12 | 31.70 | 317.50 | 40.50 |
| 8 | 219.10 | 469.90 | 222.30 | 63.50 | 114.30 | 12.70 | 298.40 | 12 | 38.10 | 393.70 | 71.50 |
| 10 | 273.00 | 546.10 | 277.40 | 69.85 | 127.00 | 12.70 | 368.30 | 16 | 38.10 | 469.90 | 104.00 |
| 12 | 323.80 | 609.60 | 328.20 | 79.25 | 142.70 | 12.70 | 419.10 | 20 | 38.10 | 533.40 | 139.00 |
| 14 | 355.60 | 641.30 | 360.20 | 85.80 | 155.40 | 12.70 | 450.80 | 20 | 41.10 | 558.80 | 161.00 |
| 16 | 406.40 | 704.80 | 411.20 | 88.90 | 165.10 | 12.70 | 508.00 | 20 | 44.40 | 615.90 | 194.00 |
| 18 | 457.20 | 787.40 | 462.30 | 101.60 | 190.50 | 12.70 | 565.10 | 20 | 50.80 | 685.80 | 267.00 |
| 20 | 508.00 | 857.20 | 514.40 | 107.90 | 209.50 | 12.70 | 622.30 | 20 | 53.80 | 749.30 | 334.00 |
| 24 | 609.60 | 1041.40 | 616.00 | 139.70 | 266.70 | 12.70 | 749.30 | 20 | 66.55 | 901.70 | 618.00 |
Aicme 1500 lb
| Ainmniúil Méid píopaí | Lasmuigh Lárlíne | Tríd is tríd Lárlíne | Taobh istigh Lárlíne | Flandaí Tiús | Tríd is tríd Ar fad | Lap Marbh fhianaise | Mol Lárlíne | Uimhir a chur ar de phoill | Poll bolt Lárlíne | Lárlíne de chiorcal de phoill | Ualach |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | I (mm) | J (mm) | kg/ píosa |
| ½ | 21.30 | 120.60 | 22.90 | 22.30 | 31.70 | 3.00 | 38.10 | 4 | 22.30 | 82.50 | 1.71 |
| ¾ | 26.70 | 130.00 | 28.20 | 25.40 | 35.00 | 3.00 | 44.40 | 4 | 22.30 | 88.90 | 2.30 |
| 1 | 33.40 | 149.30 | 35.10 | 28.40 | 41.10 | 3.00 | 52.30 | 4 | 25.40 | 101.60 | 3.40 |
| 1 ¼ | 42.20 | 158.70 | 43.70 | 28.40 | 41.10 | 4.80 | 63.50 | 4 | 25.40 | 111.20 | 3.85 |
| 1 ½ | 48.30 | 177.80 | 50.00 | 31.70 | 44.40 | 6.40 | 69.85 | 4 | 28.40 | 123.90 | 5.28 |
| 2 | 60.30 | 215.90 | 62.50 | 38.10 | 57.15 | 7.90 | 104.60 | 8 | 25.40 | 165.10 | 9.78 |
| 2 ½ | 73.00 | 244.30 | 75.40 | 41.10 | 63.50 | 7.90 | 123.90 | 8 | 28.40 | 190.50 | 13.60 |
| 3 | 88.90 | 266.70 | 91.40 | 47.70 | 73.15 | 9.70 | 133.30 | 8 | 31.70 | 203.2 | 17.80 |
| 4 | 114.30 | 311.10 | 116.80 | 53.80 | 90.40 | 11.20 | 162.00 | 8 | 35.00 | 241.30 | 27.50 |
| 5 | 141.30 | 374.60 | 114.50 | 73.15 | 104.60 | 11.20 | 196.80 | 8 | 41.10 | 292.10 | 51.50 |
| 6 | 168.30 | 399.70 | 171.50 | 82.50 | 119.10 | 12.70 | 228.60 | 12 | 38.10 | 317.50 | 62.00 |
| 8 | 219.10 | 482.6 | 222.30 | 91.90 | 142.70 | 12.70 | 292.10 | 12 | 44.40 | 393.70 | 105.00 |
| 10 | 273.00 | 584.20 | 277.40 | 107.90 | 177.80 | 12.70 | 368.30 | 12 | 50.80 | 482.60 | 179.00 |
| 12 | 323.80 | 673.10 | 328.20 | 123.90 | 218.90 | 12.70 | 450.80 | 16 | 53.80 | 571.50 | 269.00 |
| 14 | 355.60 | 749.30 | 360.20 | 133.30 | 241.30 | 12.70 | 495.30 | 16 | 60.45 | 635.00 | 365.00 |
| 16 | 406.40 | 825.50 | 411.20 | 146.00 | 260.30 | 12.70 | 552.40 | 16 | 66.55 | 704.80 | 459.00 |
| 18 | 457.20 | 914.40 | 462.30 | 162.00 | 276.30 | 12.70 | 596.90 | 16 | 73.15 | 774.70 | 598.00 |
| 20 | 508.00 | 984.20 | 514.40 | 177.80 | 292.10 | 12.70 | 641.30 | 16 | 79.25 | 831.80 | 712.00 |
| 24 | 609.60 | 1168.40 | 616.00 | 203.20 | 330.20 | 12.70 | 726.00 | 16 | 91.90 | 990.60 | 1090.00 |
Aicme 2500 lb
| Ainmniúil Méid píopaí | Lasmuigh Lárlíne | Tríd is tríd Lárlíne | Taobh istigh Lárlíne | Flandaí Tiús | Tríd is tríd Ar fad | Lap Marbh fhianaise | Mol Lárlíne | Uimhir a chur ar de phoill | Poll bolt Lárlíne | Lárlíne de chiorcal de phoill | Ualach |
| in | mm | A (mm) | B (mm) | C (mm) | D (mm) | R (mm) | F (mm) | H (mm) | I (mm) | J (mm) | kg/ píosa |
| ½ | 21.30 | 133.40 | 22.90 | 30.20 | 39.60 | 3.00 | 42.90 | 4 | 22.40 | 88.90 | 2.92 |
| ¾ | 26.70 | 139.70 | 28.20 | 31.75 | 42.90 | 3.00 | 50.80 | 4 | 22.40 | 95.30 | 3.40 |
| 1 | 33.40 | 158.80 | 35.10 | 35.10 | 47.80 | 3.00 | 57.15 | 4 | 25.40 | 108.00 | 4.77 |
| 1 ¼ | 42.20 | 184.20 | 43.70 | 38.10 | 52.30 | 4.80 | 73.15 | 4 | 28.40 | 130.00 | 7.08 |
| 1 ½ | 48.30 | 203.20 | 50.00 | 44.50 | 60.45 | 6.40 | 79.25 | 4 | 31.75 | 146.10 | 9.93 |
| 2 | 60.30 | 235.00 | 62.50 | 50.80 | 69.85 | 7.90 | 95.30 | 8 | 28.40 | 171.50 | 14.70 |
| 2 ½ | 73.00 | 266.70 | 75.40 | 57.15 | 79.25 | 7.90 | 114.30 | 8 | 31.75 | 196.90 | 21.30 |
| 3 | 88.90 | 304.80 | 91.40 | 66.55 | 91.90 | 9.70 | 133.40 | 8 | 35.10 | 228.60 | 32.30 |
| 4 | 114.30 | 355.60 | 116.80 | 76.20 | 108.00 | 11.20 | 165.10 | 8 | 41.10 | 273.10 | 52.50 |
| 5 | 141.30 | 419.10 | 114.50 | 91.90 | 130.00 | 11.20 | 203.20 | 8 | 47.80 | 323.90 | 82.60 |
| 6 | 168.30 | 482.60 | 171.50 | 108.00 | 152.40 | 12.70 | 235.00 | 8 | 53.80 | 368.30 | 127.00 |
| 8 | 219.10 | 552.50 | 222.30 | 127.00 | 177.80 | 12.70 | 304.80 | 12 | 53.80 | 438.20 | 186.00 |
| 10 | 273.00 | 367.10 | 277.40 | 165.10 | 228.60 | 12.70 | 374.70 | 12 | 66.55 | 539.80 | 352.00 |
| 12 | 323.80 | 762.00 | 328.20 | 184.20 | 254.00 | 12.70 | 441.50 | 12 | 73.15 | 619.30 | 501.00 |
Bunaithe i 2007 agus bhog sé go Crios Forbartha Eacnamaíochta Longyou, Zhejiang Province, i 2022. Clúdaíonn sé achar de 130,000 méadar cearnach, níos mó ná 30 líne táirgthe, 300 oibrí, 20 duine T&F, 30 duine cigireachta agus aschur bliantúil de 50,000 tonna.
Tá Córas Bainistíochta Cáilíochta ISO9001: 2008 rite aige, PED 97/23/CE deimhniú Trealamh Brú Trealamh Brú, Ceadúnas Déantúsaíochta Trealamh Speisialta na Síne (Feadán Brú) TS, Deimhniú ASME, Córas Bainistíochta Caighdeánaithe Fiontraíochta Cúige, Córas Bainistíochta Comhshaoil 2004, Clár Glan (Fiontraíocht Ghlas), agus sraith de theastas, Clár na Breataine), Clár na Breataine) de Chlár na Breataine), agus Sraith de Chlár na Breataine de Chumann Classification) na Breataine), agus: de loingseoireacht (LR), Deutsche Veritas (GL), Bureau Veritas Society (BV), Deimhniú Monarcha Norske Veritas (DNV), agus Deimhniú Monarcha Chlár Loingseoireachta na Cóiré (KR).
I measc na bpríomhtháirgí tá píopaí cruach dhosmálta, feistis phíobáin, flanges, comhlaí, etc., a úsáidtear go forleathan i peitriliam, tionscal ceimiceach, tionscal núicléach, bruithniú, longthógáil, cógaisíocht, bia, caomhnóireacht uisce, cumhacht leictreach, fuinneamh nua, trealamh meicniúil, agus páirceanna eile. Cloíonn an chuideachta leis an tenet corparáideach de "cháilíocht le haghaidh marthanais, cáil ar fhorbairt" agus freastalaíonn sé go dílis ar gach custaiméir chun cás buaiteach a chruthú.
Dlús Aifreann Cruach Éadrom: Bunús agus Tábhacht Phraiticiúil Is maoin bhunúsach é mais-dhlús cruach éadrom a théann i bhfeidhm go díreach ar an gcaoi a ndéanann innealtóirí agus dearthóirí comh...
Féach níos móRéamhrá Ábhar Cruach Íseal Alloy Is cineál cruach é ábhar cruach cóimhiotail íseal ina bhfuil céatadán beag d'eilimintí cóimhiotail, de ghnáth níos lú ná 8%, chomh maith le carbóin. Cuirtea...
Féach níos móForbhreathnú - cad a chiallaíonn "meáchan in aghaidh an orlach ciúbach" do chruach dhosmálta Is éard atá i gceist le "meáchan in aghaidh an orlach ciúbach" ach mais (i bpunt) d'orlach ciúba...
Féach níos móNí roinnfimid do sheoladh ríomhphoist go deo agus tusa
Is féidir linn diúltú ag am ar bith, geallaimid.
Ag speisialú i dtáirgeadh dosmálta
Steel Pipe
Uimh.
+86 18969027607
sales@xhxmat.com
Copyright © Co Ábhar Speisialta Xinhang, Ltd. Brainse Hangzhou Rights Reserved.
